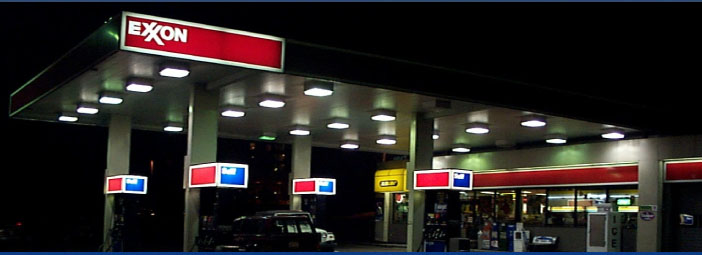

GAS STATION LIGHTING
• Gas Stations
• Canopies
** Standard Color is WHITE for Gas Station Canopies


SPECIFICATIONS:

• Ballast Type: Electronic
• Start Method: InstantON
• Hot Re-start: InstantON
• Universal Input Line Voltage: 120-277 VAC
• Input Line Frequency: 50/60 Hz
• Lamp/Ballast System Life: 100,000 Hrs.
• Lumen Maintenance @75,000Hrs: >70%
• Color Temperature: 5000
• Color Rendering Index (CRI): 83
• Minimum Starting Temperature: -20 F
• Maximum Operating Temperature: 160 F
• Lamp Operating Frequency: 250 kHz
• Power Factor: > 0.98
• Total Harmonic Distortion: < 10%
• Inrush Current Peak: < 10 Amp
• ETL Listed / UL Standard 1598: Yes
• FCC Compliance: Part 18, Subp. C

APPLICATION, FEATURES AND BENEFITS
• Heat and Cold impact resistant UV protected, Non-Yellowing PC lens
• Steel housing with electrocoat white or gray paint
• Ballast made of long life components
• InstantON(TM) flicker-free Cold Start and Hot Re-Start
• Correlated Color Temperature of 5000°K for greater visibility
• High Power Factor, Low THD Replaceable Ballast
• Concealed continuous gasket seals against harmful dust, dirt, and moisture
• Advanced phosphors for high lumen maintenance and high lumen output
• Aluminum Anodized reflectors for superior long term performance
• Up to 20 years Maintenance free operation
• Surface mount, flange mount, or installed with steel wire system

ul_logo icon DOWNLOAD PDF
